Platform |
|
|
CPU |
MT7628NN 580MHz |
|
WiFi |
2.4Ghz, IEEE 802.11b/g/n |
|
Technical |
|
|
Flash |
16M |
|
RAM |
128M |
|
Channel |
1-13 channel |
|
Transfer speed |
300Mbps |
|
Sensitivity |
11Mbps: ≤-90dBm, 54 Mbps: ≤-72dBm |
|
Default LTE module Frequency Band ( Optional ) |
|
|
FDD-LTE |
B1(2100MHz),B3(1800MHz),B7(2600MHz),B20(800MHz) |
|
Interface |
|
|
RJ45 |
1 * 10/100MAdaptive WAN / LAN port (Auto MDI / MDIX) |
|
Antenna |
2 * 3dBi Internal Antenna |
|
PCIe connector |
Support |
|
Button |
Power/ Reset |
|
Micro SD |
Up to 32GB |
|
SIM |
Support |
|
USB |
1 * USB 2.0 |
|
Power bank |
Built-in 6000mAh Lion battery |
|
Charge |
Input 5V,1A/ Output 5V,1A |
|
Software |
|
|
System |
Open-WRT |
|
Security modes |
Open/ WEP/ WPA-PSK/ WPA2-PSK |
|
Environment |
|
|
Storage Temperature |
-40˚C～80˚C |
|
Storage Humidity |
5% RH to 95% RH (non-condensing) |
|
Operate Temperature |
-20˚C～60˚C |
Description

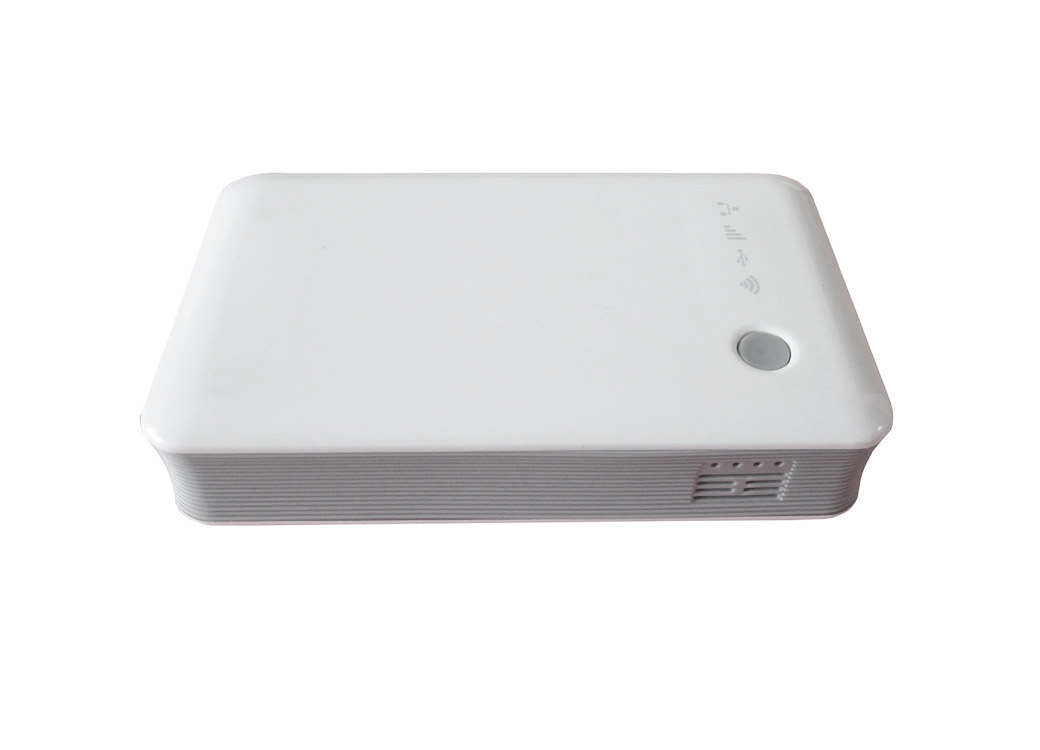

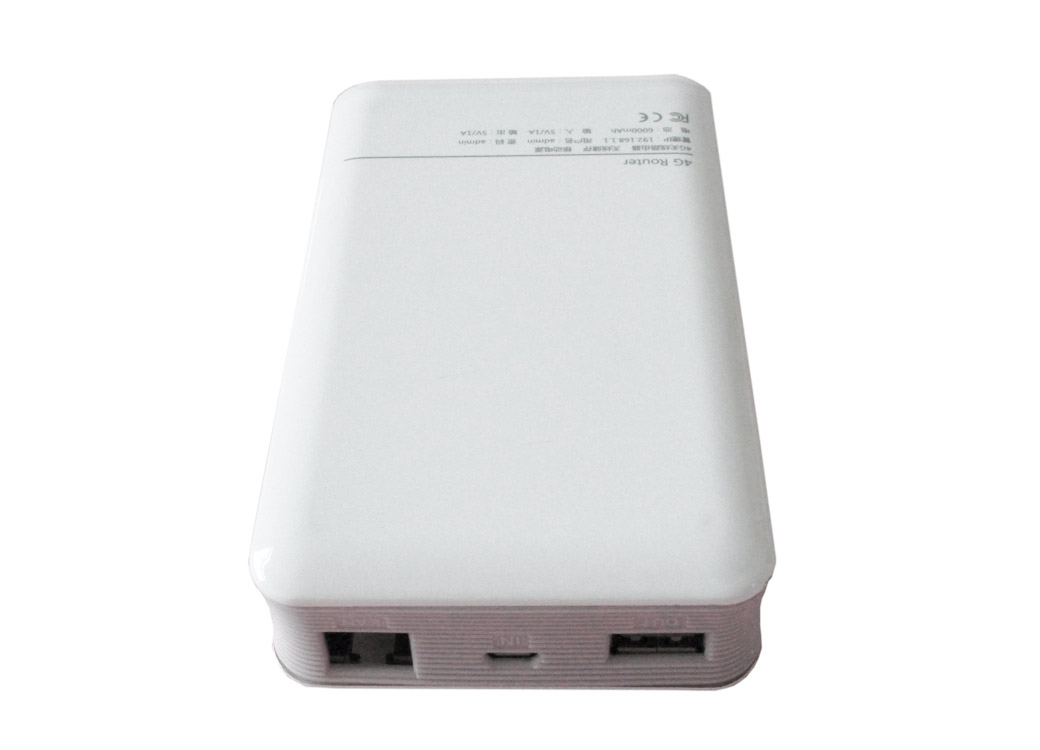

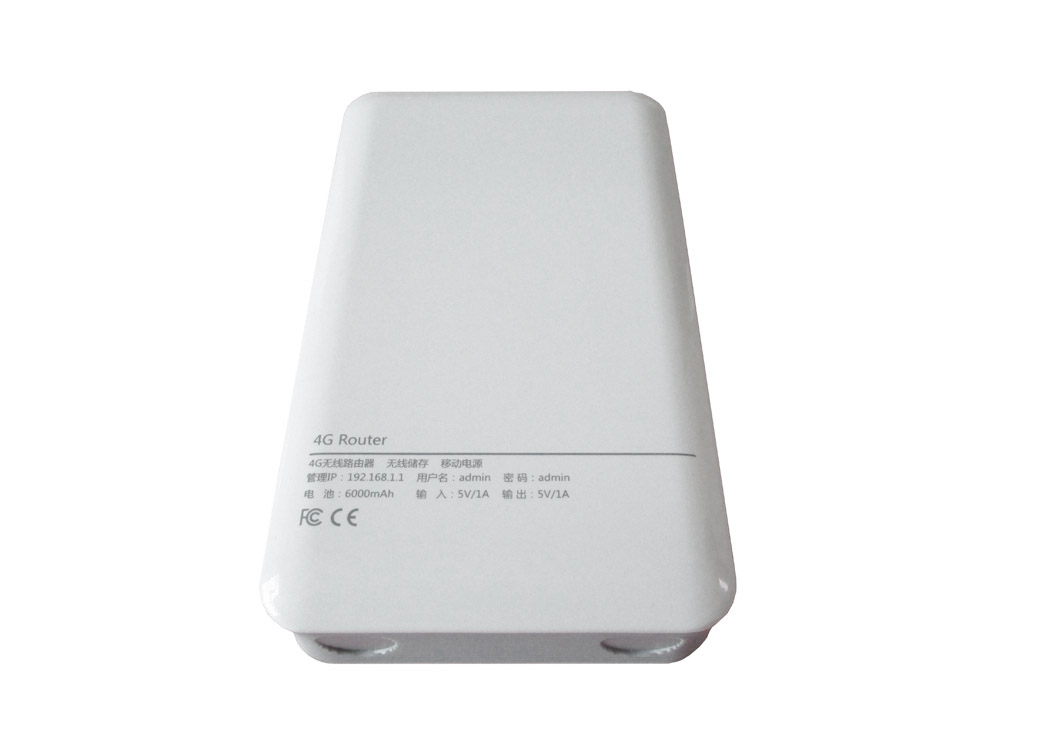

OMY-LT01 is IEEE 802.11b/g/n Multi-function 300Mbps router with 3G/4G Router,AP,Repeater,Power bank function, can work as online player,offline APP promote,the SD card can expand to 32G,support download and upload document .This device is long standby design with Built-in 6000mAh battery very ideal for outdoor use and Car / Bus WiFi share use. With the latest MT7628NN chipset this device also support Open-WRT.Features
- Multi-function 3G/4G Router/AP/Repeater/Power bank
- 300Mbps Wifi Router,Support 30 people simultaneously use
- APP(APK),based on Dlan,Online Player,Download & upload
- Built-in 6000mAh Polymer Battery,Super Standby
- SD card expandable up to 32Gb
- Pre-load Open-WRT system
