CPU |
MT7621AT Dual-core 880Mhz |
|
Hardware |
|
|
Flash |
128MB |
|
SDRAM |
256MB DDR3 |
|
Interface |
1000Mbps Configurable WAN/LAN port x 3 1000Mbps WAN port x 1 1000Mbps LAN port x 1 USB3.0 x1 USB2.0 x1 Console Port x 1 |
|
Button |
Reset |
|
System |
OPENWRT / SDK |
|
Work Mode |
Router/Controller, Bridge/Switch |
|
Advanced Function |
Central Configuration Multiple SSID / VLAN Support L2 Fast Roaming |
|
Network |
Port Mapping, DMZ Host, Statics Routing, DDNS,UPNP |
|
Management |
Firmware Upgrade & backup, Factory Reset, Restart, WEB Management, Log Management, PING tool |
|
MTBF |
>50000H |
|
Power Consumption |
<12Watts |
|
Dimension |
282×178×44mm |
|
Power Supply |
AC 100~240V 50/60hz |
|
Environment |
|
|
Storage Temperature |
-45C~85C |
|
Operate Temperature |
-25C~75C |
|
Storage Humidity |
5%~95%RH ( Non-condensing) |
|
Operating Humidity |
5%~95%RH ( Non-condensing) |
Description

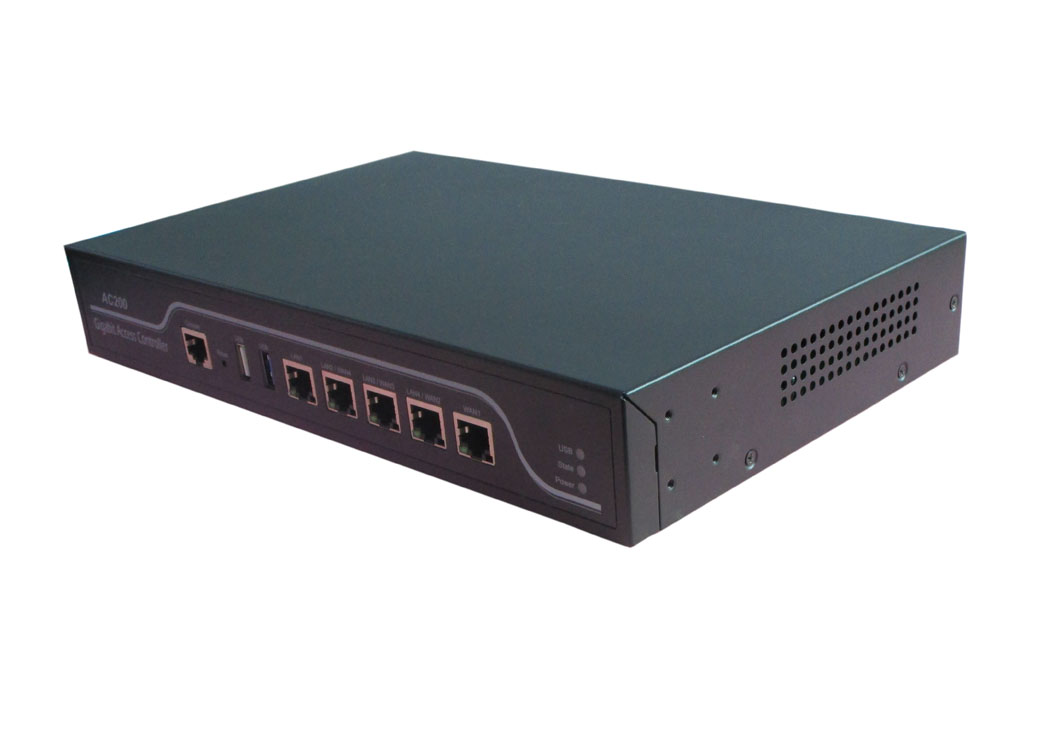

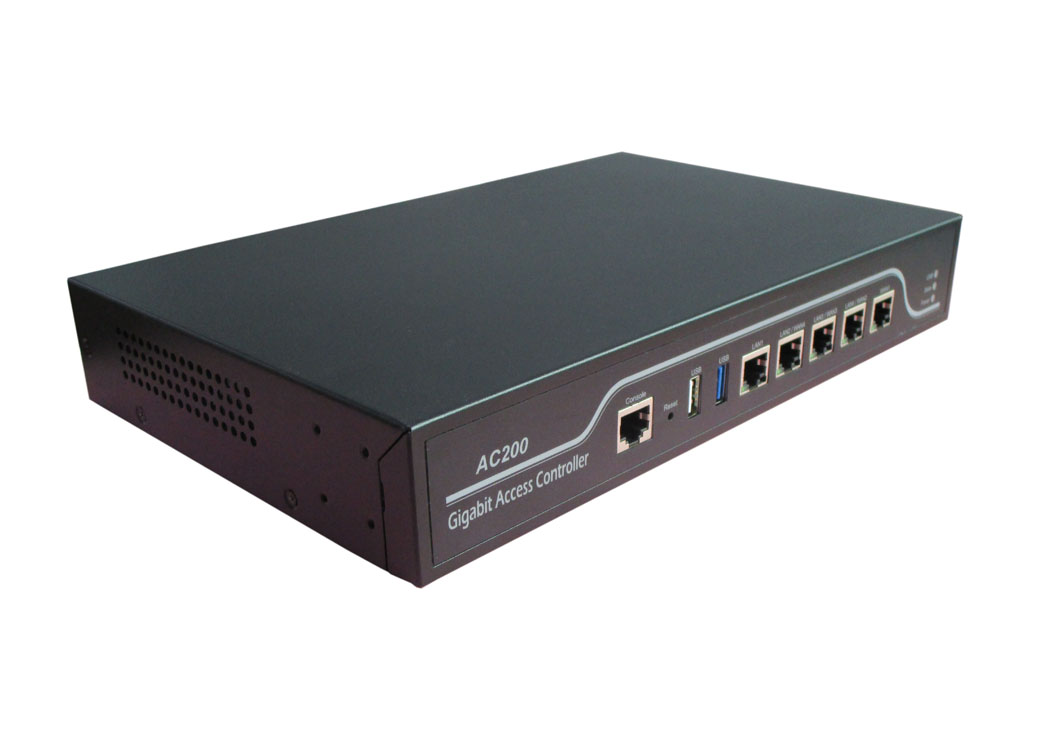

OMY-AC200 is MT7621AT chipset based Multiple 1000Mbps WAN ports Access Controller, support Router, Bridge work mode.
OMY-AC200 can control up to 250 APs, very convenient for network expand projects.
Features
- Complies to 802.11b/g/n protocols
- MT7621AT Dual-core 880Mhz Chipset
- Configurable WAN/LAN port x 3,LAN x 1,WAN x1
- USB2.0 x 1, USB 3.0 x1, Console port x 1
- Support Open WRT
- AC 110-240V Internal power Supply
